Brass Cable Glands

We are highly experienced Manufacturer, Supplier and Exporter of various types of Brass Products such as Electrical Brass Cable Glands. We are specialize in manufacturing Flame Proof Industrial Cable Glands covering the wide range of armored and non-armored cable in form of various types like BW, CW, E1W, A1/A2, PG, Marine type etc. We offer flexibility, re-usability, heat resistance, dimensional accuracy, easy to dismantle, high efficiency in our precision product so it is highly appreciated by our clients. We can customize according to customer's drawings or specifications.

Material:
Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
Any Special Material Composition as per customers requirement

Product Range:

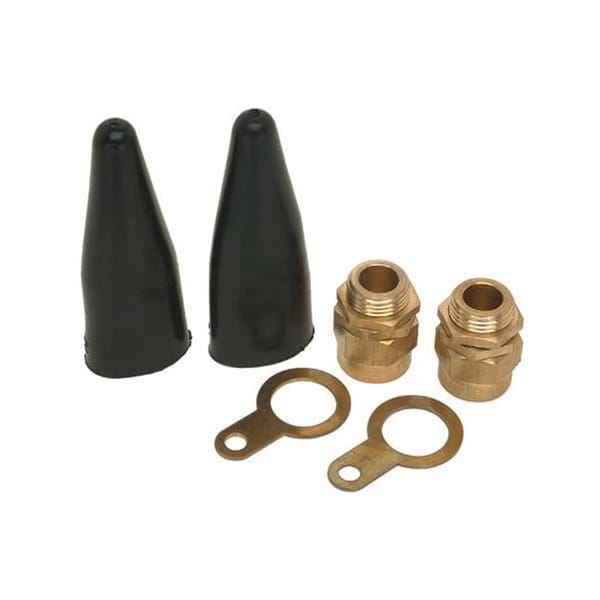

• Cable Glands - BW2 parts
• Cable Glands - CW3 parts
• Cable Glands - A1 / A2
• Cable Glands - E1W
• Cable Glands - B/W 4 parts
• Cable Glands - C/W 4 parts
• All the Cable Glands are available with accessories and Earth Tags.

Features:

1. Cable Glands are produced as per BS 6121 Standard.
2. BW type Cable Glands provide an integral armor clamp for armored cable which provides an electrical bond between the cable armor & the gland.
3. A1/A2 Gland Provides a single pull resistant seal on the outer sheath of an unarmored cable. This Type gland maintains ingress protection of IP66/IP68 to 25 Meters.
4. PG Glands are basically produced as per DIN standard 46320/46255 & available with sprain relief facility with round or hex intermediate sockets.
5. Marine Cable Glands as per JIS standards are basically used for Ship Decks & other marine Applications.

Finish & Coating:
Natural, Nickle Plated, Tin Plated brass cable glands, Any coating as per customer specification

Threads:
ISO Metric (MM Threads)

Sizes:
Specification or as per custom design or requirement.

Use:
joining, transmitting, glanding, continuing and supporting electrical accessories, seal and attach cable to the electrical components for safety purpose

Manufacturing Unit:
Jamnagar, Gujarat, India

Availability:
In India as well as Foreign Countries
